Does ReflowPDF support the CSS property stroke-dasharray?

0 of 8 examples match Chrome. renders differently: The property takes effect, but our pixels are not Chrome's. The difference map on this page shows where. Measured against Chrome on 8 examples; the renders and the difference maps are published at https://reflowpdf.com/conformance/css/stroke-dasharray.

Dataset 20261011-0550-f160c57 · measured 2026-10-11 05:50 UTC

stroke-dasharray

✕renders differently0 of 8 examples match Chromefill-stroke-3

The property takes effect, but our pixels are not Chrome's. The difference map on this page shows where.

What the specification says

Initial value: none
Applies to: text and SVG shapes
Inherited: yes
Percentages: relative to the scaled viewport size
Computed value: as specified
Syntax: none | [<length-percentage> | <number>]+#

fill-stroke-3 definition

The measurements

8 examples, 0 of them matching Chrome, the rest first. Each is one declaration on a small page, drawn by Chrome and by our engine. Drag the handle to wipe between them.

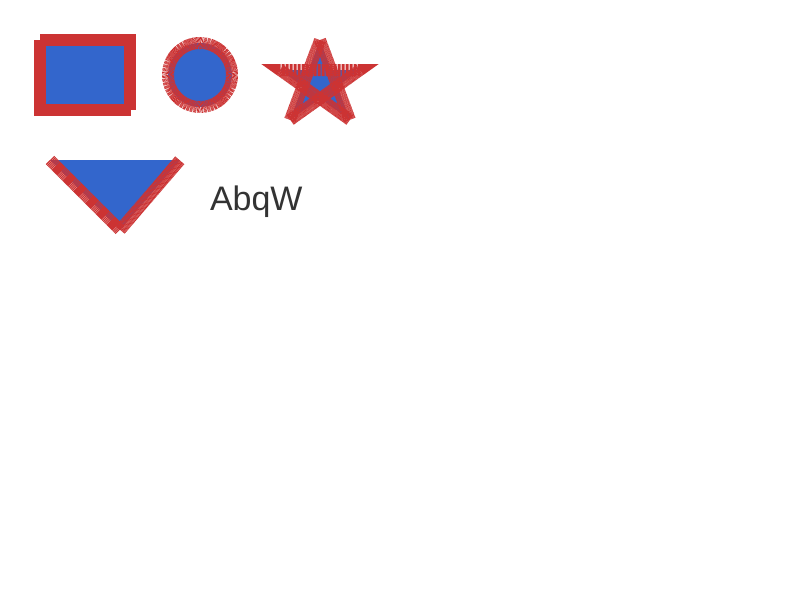

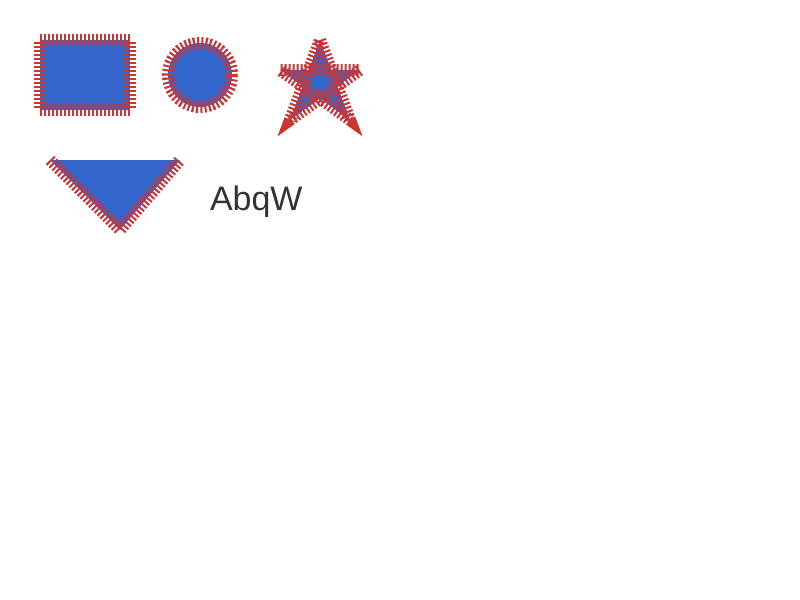

stroke-dasharray:2✕renders differently

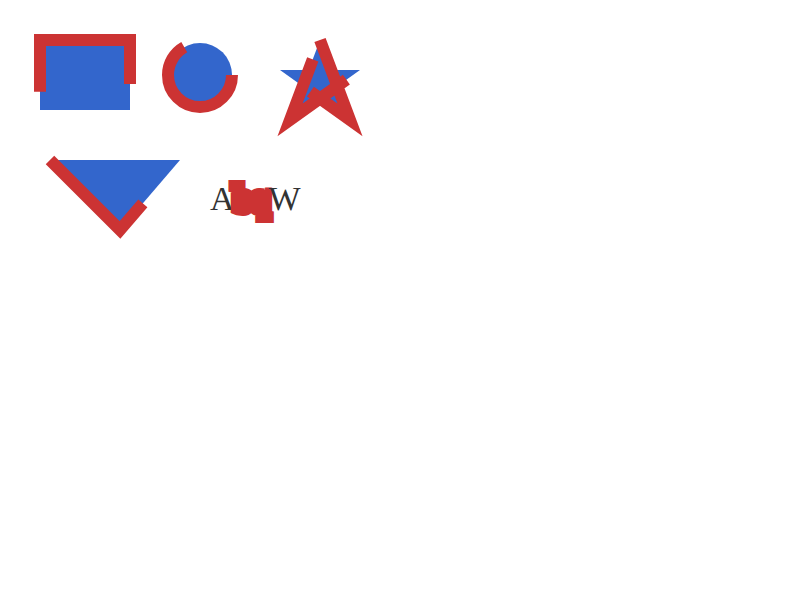

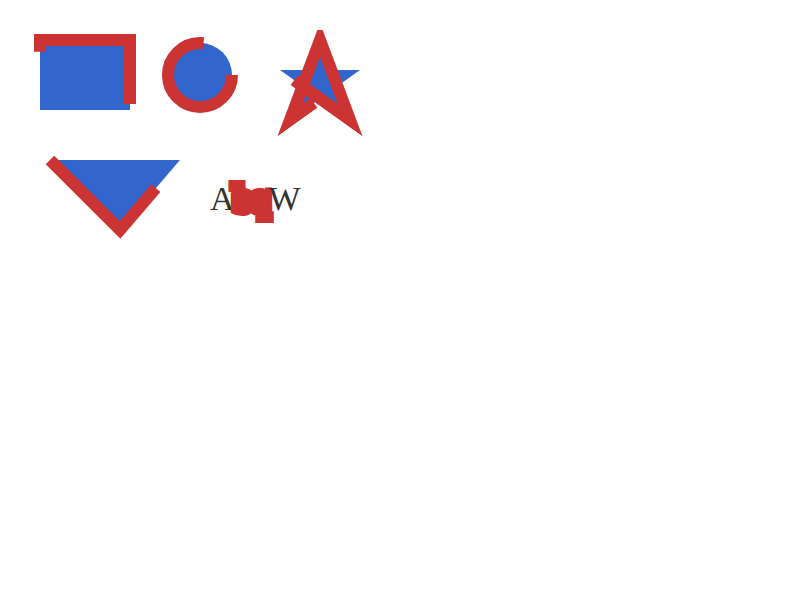

Chrome of this test — Left of the line is our rendering; right of it is the chrome. Drag, or focus the slider and use the arrow keys.

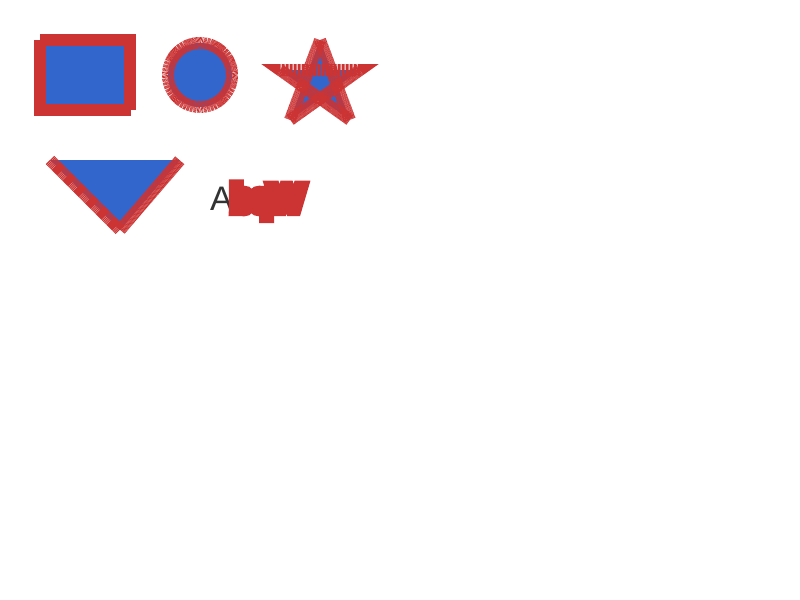

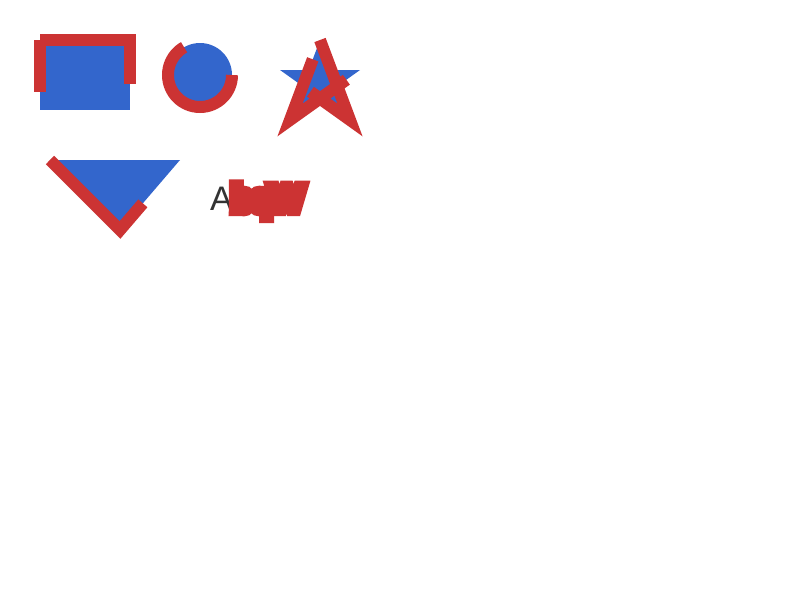

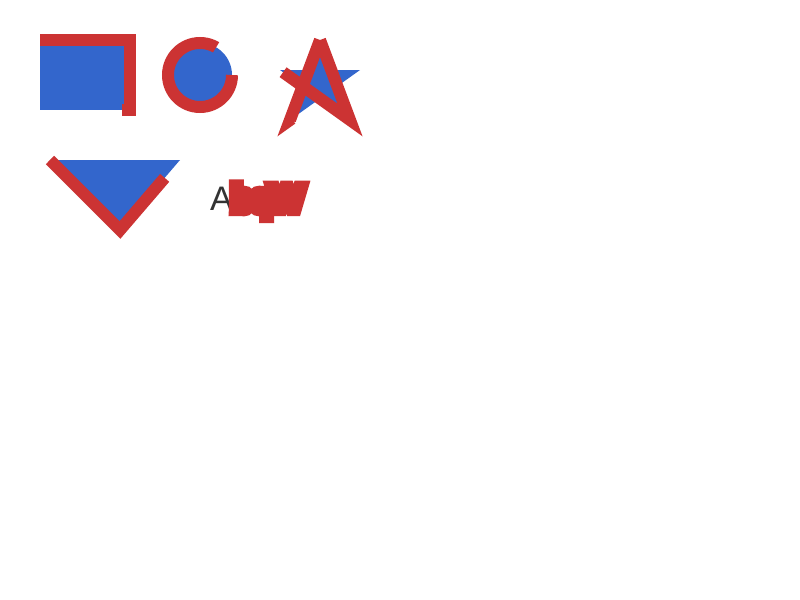

Our render of this test — Left of the line is our rendering; right of it is the chrome. Drag, or focus the slider and use the arrow keys.

8,286 pixels differ from Chrome, the largest by 204 of 255 on one channel.

Differing pixels: 8,286
Max channel delta: 204

the example page

stroke-dasharray:20px✕renders differently

2,122 pixels differ from Chrome, the largest by 204 of 255 on one channel.

Differing pixels: 2,122
Max channel delta: 204

the example page

stroke-dasharray:50%✕renders differently

1,912 pixels differ from Chrome, the largest by 204 of 255 on one channel.

Differing pixels: 1,912
Max channel delta: 204

the example page

stroke-dasharray:0.4✕renders differently

14,524 pixels differ from Chrome, the largest by 204 of 255 on one channel.

Differing pixels: 14,524
Max channel delta: 204

the example page

stroke-dasharray:4px✕renders differently

2,249 pixels differ from Chrome, the largest by 204 of 255 on one channel.

Differing pixels: 2,249
Max channel delta: 204

the example page

stroke-dasharray:40%✕renders differently

1,869 pixels differ from Chrome, the largest by 204 of 255 on one channel.

Differing pixels: 1,869
Max channel delta: 204

the example page

stroke-dasharray:calc(20px + 4px)✕renders differently

2,044 pixels differ from Chrome, the largest by 204 of 255 on one channel.

Differing pixels: 2,044
Max channel delta: 204

the example page

stroke-dasharray:calc(40% + 20px)✕renders differently

1,932 pixels differ from Chrome, the largest by 204 of 255 on one channel.

Differing pixels: 1,932
Max channel delta: 204

the example page

Which values were measured

“Supported” on one example means “supported at the value we tried”. The property’s declared grammar has 4 branches; 3 of them carry a measurement. The publishing ceiling is 12 examples per property — a branch past it is left out by our choice, not by accident.

Value	Measured
20px	✕renders differently
50%	✕renders differently
2	✕renders differently
none	not measured

Measured against Chrome 148.0.7778.96 on 2026-10-11, with up to 40 candidate values tried per property. All properties · How the measurement works
