object-view-box

same effect as Chrome: 1 not decided

css-images-5

The declaration changes our page the way it changes Chrome’s. What still differs between the two renderings was there before the declaration too, on the same page without it (mostly the fonts): no larger with it, or in the same places and no stronger.

What the specification says

Initial valuenone
Applies toreplaced elements
Inheritedno
Percentagesn/a
Computed valuespecified keyword, or computed <basic-shape> function
Syntaxnone | <basic-shape-rect>

The definition in css-images-5

The measurements

2 examples: one matches Chrome and one is not decided. Each is one declaration on a small page, drawn by Chrome and by our engine. Drag on a picture to move the line between them.

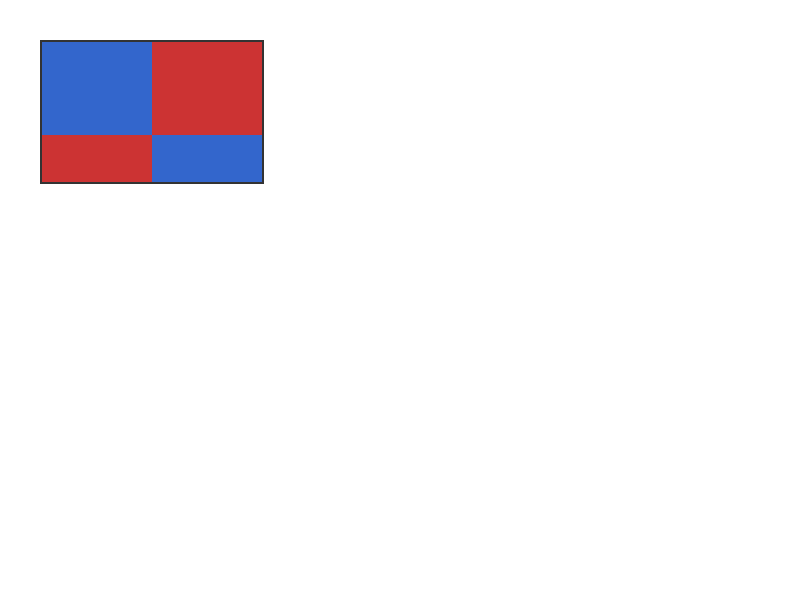

object-view-box:xywh(10px 10px 20px 15px)

not decided

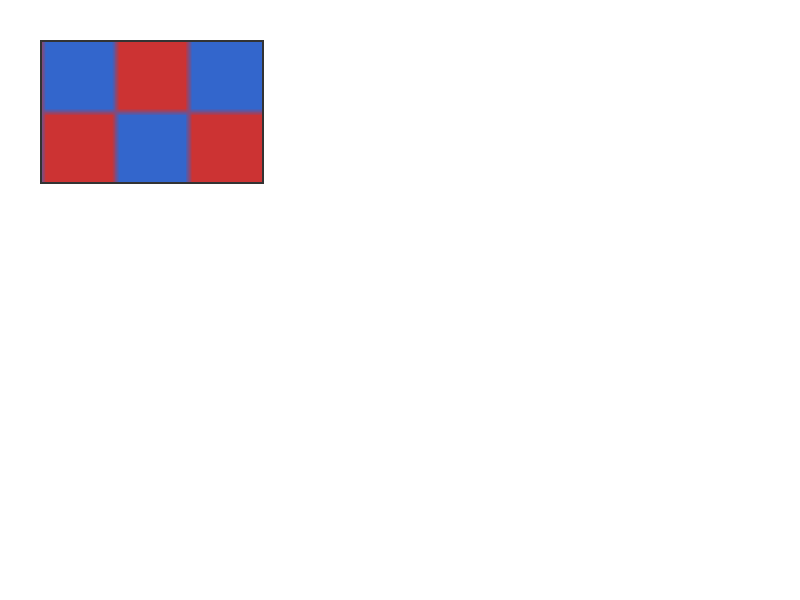

Chrome rendering
Ours rendering
Left of the line is ours, right of it Chrome’s rendering. Drag on the picture to move the line.
Pixels that differ from Chrome4,130
The same, on the page without the declaration3,734
Largest difference on one colour channel87 of 255
The same, on the page without the declaration87 of 255

The pages differ by 4,130 pixels with the declaration and by 3,734 without it: a little more, but within the difference the text already makes, so the measurement does not decide this example.

The example’s page

object-view-box:rect(10px 100% 100% 10px)

same effect as Chrome
Chrome rendering
Ours rendering
Left of the line is ours, right of it Chrome’s rendering. Drag on the picture to move the line.
Pixels that differ from Chrome3,598
The same, on the page without the declaration3,734
Largest difference on one colour channel87 of 255
The same, on the page without the declaration87 of 255

The pages differ by 3,598 pixels with the declaration and by 3,734 without it: what differs is there before the property (mostly the fonts), and the declaration does not add to it.

The example’s page

Which values were measured

A match on one example means a match at the value tried. The property’s grammar has 4 branches, and 2 of them carry a measurement.

ValueMeasured
inset(20px)not measured
rect(10px 100% 100% 10px)
same effect as Chrome
xywh(10px 10px 20px 15px)
not decided
nonenot measured

Measured against Chrome 148.0.7778.96 on 5 November 2026, with up to 40 candidate values tried per property. How it was measured
