Does ReflowPDF support the CSS property clip?

pixel-exact: Our rendering of the example is identical to Chrome's, pixel for pixel — no further apart than the example's own noise floor. Measured against Chrome on 1 example; the renders and the difference maps are published at https://reflowpdf.com/conformance/css/clip.

Dataset 20261001-0535-e08c90a · measured 2026-10-01 05:35 UTC

clip

✓pixel-exactcss-masking-1

Our rendering of the example is identical to Chrome's, pixel for pixel — no further apart than the example's own noise floor.

What the specification says

Initial value: auto
Applies to: Absolutely positioned elements. In SVG, it applies to elements which establish a new viewport, pattern elements and mask elements.
Inherited: no
Percentages: n/a
Computed value: as specified
Syntax: <rect()> | auto

css-masking-1 definition

The measurements

One example. Each is one declaration on a small page, drawn by Chrome and by our engine. Drag the handle to wipe between them.

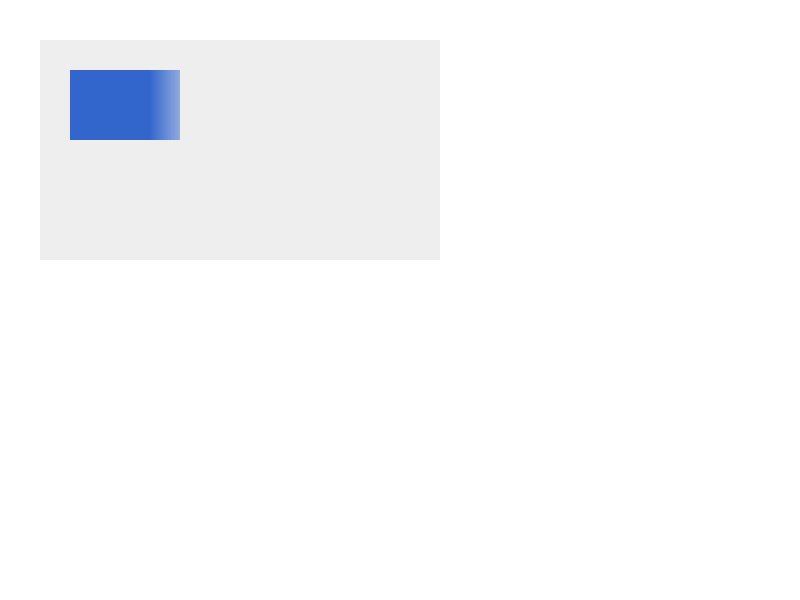

clip:rect(10px, 190px, 110px, 10px)✓pixel-exact

Chrome of this test — Left of the line is our rendering; right of it is the chrome. Drag, or focus the slider and use the arrow keys.

Our render of this test — Left of the line is our rendering; right of it is the chrome. Drag, or focus the slider and use the arrow keys.

1,976 pixels differ from Chrome, the largest by 3 of 255 on one channel.

Differing pixels: 1,976
Max channel delta: 3

the example page

Which values were measured

“Supported” on one example means “supported at the value we tried”. The property’s declared grammar has 1 branch; 0 of them carry a measurement. The publishing ceiling is 12 examples per property — a branch past it is left out by our choice, not by accident.

Value	Measured
auto	not measured

Tests in the suite that name this property

Secondary evidence: 25 Web Platform Tests carry a spec anchor pointing at this property. Only 1,254 tests in the whole corpus carry such an anchor, so an empty list here means nothing at all.

+ 13 more

Measured against Chrome 148.0.7778.96 on 2026-10-01, with up to 40 candidate values tried per property. All properties · How the measurement works
